Supabase to AWS RDS Migration — Damilare Adekunle

Role: Cloud & DevOps Engineer (Freelance)
Stack: AWS DMS · AWS RDS (PostgreSQL) · Supabase (PostgreSQL) · Terraform · EC2 Bastion · Secrets Manager

What Was Delivered

A live production database migrated from Supabase to AWS RDS PostgreSQL with near-zero downtime — no maintenance window, no data loss, PostGIS geometry data fully preserved. The migration ran entirely within Supabase's permission model, requiring no superuser access, and was completed with full data integrity verified across three independent validation layers before cutover was approved.

The Problem

A client was running their production database on Supabase — a hosted PostgreSQL service. As the product scaled, they needed more control: custom extensions, lower-latency connections from their AWS application tier, and the ability to tune the database directly. The target was AWS RDS PostgreSQL inside their own VPC.

The constraint: this is a live production system. A dump-and-restore during a maintenance window meant hours of downtime — not acceptable. The migration had to keep the source and target in sync continuously while the target was validated, then cut over with a connection string change.

The database included PostGIS geometry columns, large object data, and a schema rename requirement — one schema needed to land under a different name on the target, as the application was being updated in parallel.

The DMS Configuration Challenge

This is where the real work was.

AWS DMS defaults to the pglogical plugin for PostgreSQL logical replication, which requires superuser privileges on the source to install an extension and attach DDL event triggers. Supabase doesn't grant superuser. The first DMS task run failed within seconds — DMS tried to create its audit infrastructure, hit a permission error, and aborted.

The fix required three deliberate changes:

1. Disable DDL capture. Set CaptureDdls=false in the task settings. The schema is already defined on the target — replicating DDL events isn't needed for a one-time migration.

2. Switch to pgoutput. This is PostgreSQL's built-in logical replication protocol, available without any external extension. It requires a publication and a dedicated replication user — both creatable without superuser:

CREATE PUBLICATION migration_pub FOR ALL TABLES;
CREATE ROLE replication_user WITH REPLICATION LOGIN PASSWORD '...';
GRANT SELECT ON ALL TABLES IN SCHEMA public TO replication_user;

The replication slot is also pre-created before the DMS task starts, so DMS attaches to an existing slot rather than trying to create one using the unavailable plugin.

3. Keep the slot alive. After full load completes, DMS has an option to stop the task automatically. If it stops, the replication slot on the source becomes invalid — Supabase drops any slot with no active consumer. The task setting "Do not stop after full load" keeps DMS running and transitions it directly from bulk load into CDC mode, maintaining the live sync.

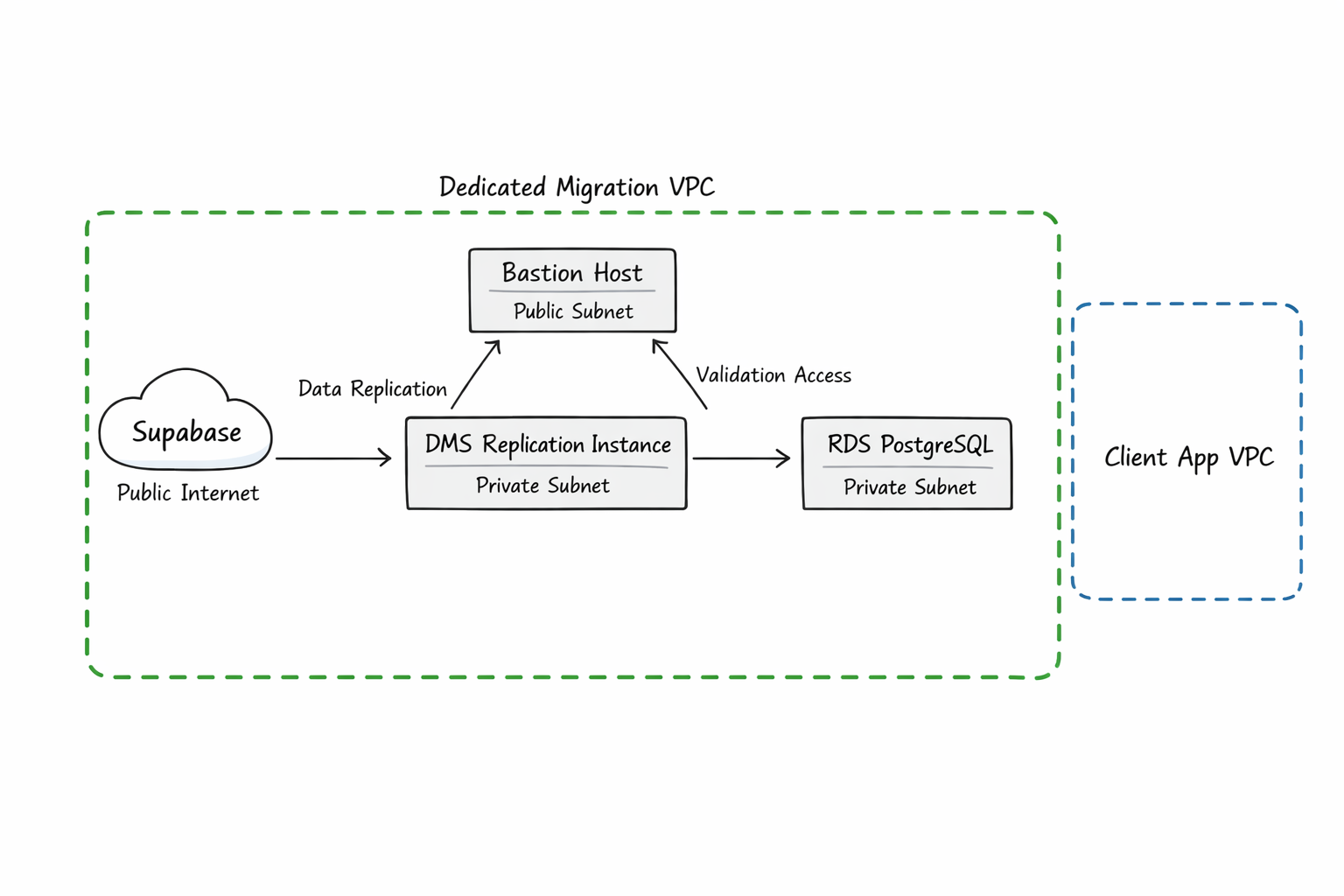

Infrastructure

All migration infrastructure was provisioned via a single Terraform file — auditable, version-controlled, and torn down cleanly after cutover.

A dedicated VPC separated migration traffic from the client's application environment, with DMS and RDS in private subnets and a bastion host for validation queries. The bastion's user_data installs all required PostgreSQL extensions and creates the renamed target schema on first boot — if the instance is ever replaced, it self-heals without manual steps.

The DMS replication instance was deliberately over-provisioned after an early attempt on a smaller class failed mid-replication from memory pressure. The larger instance handles buffering large transactions without stalling CDC. Storage was provisioned as io2 Provisioned IOPS to avoid throttling under sustained replication write load.

DMS endpoint credentials are stored in Secrets Manager and referenced by ARN — never written to any file, never committed to version control.

Schema Transformation and LOB Handling

One schema was renamed between source and target using a DMS table mapping transformation rule that rewrites the schema identifier during replication. The bastion creates the target schema at launch, so DMS can begin writing immediately without a schema-not-found error.

Several tables include PostGIS geometry columns, which DMS treats as large objects. These were being silently truncated on the initial run. Raising the LOB size limit in the task settings resolved this — subsequent integrity checks confirmed that row fingerprints matched for all affected tables.

Data Integrity Validation

Cutover is only safe when the data can be proven identical. Three validation layers were run before anyone approved the switch:

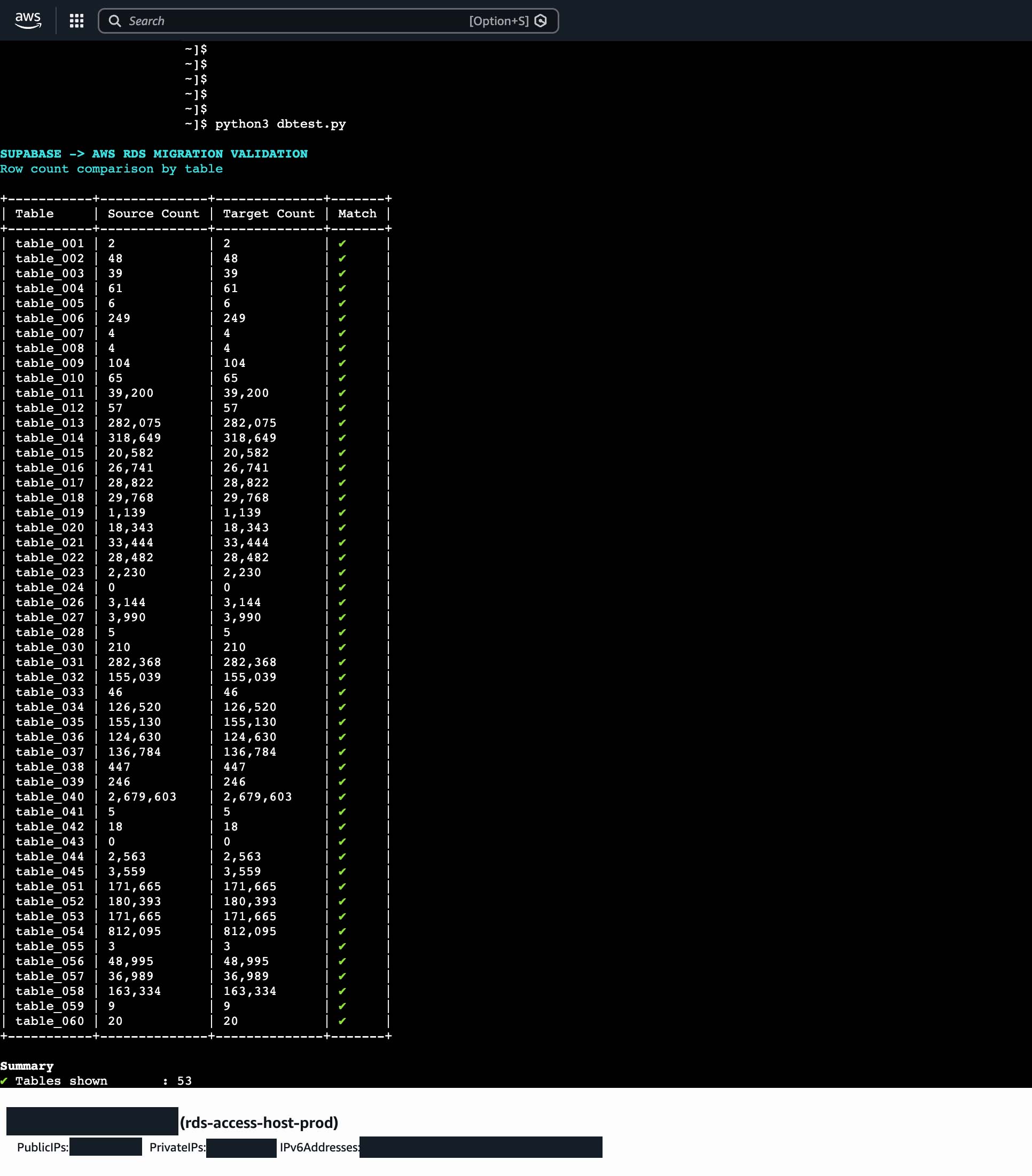

Row counts — a script compares counts per table across source and target. Run once after full load completes and again after several hours of CDC, to confirm ongoing changes are landing correctly.

Schema diffs — column names, types, and nullability are compared for every table. This catches anything DMS silently skipped or mis-typed during the bulk load phase.

Row fingerprinting — for critical tables, an MD5 hash is computed over all rows ordered by primary key on both sides. This is the highest-confidence check: it catches data corruption, row reordering, and truncation that row counts alone would miss.

All three passed before cutover.

Outcome

Near-zero downtime. CDC kept the target in sync throughout validation. Cutover was a connection string change, not a maintenance window.

Full data integrity verified across row counts, schema diffs, and row-level fingerprints.

PostGIS geometry preserved. LOB limit tuning ensured no silent truncation of spatial data.

No superuser required on Supabase. The pgoutput approach works entirely within the platform's permission model.

Infrastructure codified and disposable. The full migration stack was provisioned by Terraform and cleanly destroyed after cutover.
